SECURUS

When your product needs to be secure

New to the market: the

VS 610

Vertical Pouch-Making Machine

inquiries@securuscom.com
(862) 348-0550

The ultimate solution for businesses that demand secure, tamper-evident pouches to keep products safe and protected. Engineered for maximum flexibility and efficiency, the VS 610 eliminates the need for pricey, long-lead-time premade pouches - empowering you to create high-quality, custom pouches instantly, right when you need them.

From Tyvek to poly to foil films, the VS 610 delivers airtight, repeatable seals for maximum product protection. Its smart, adaptable design makes it easy to fine-tune settings on the fly, so you can respond swiftly to changing product specs or evolving customer demands.

A medical needle with a blue wing-shaped protective cover on a white circular tray.

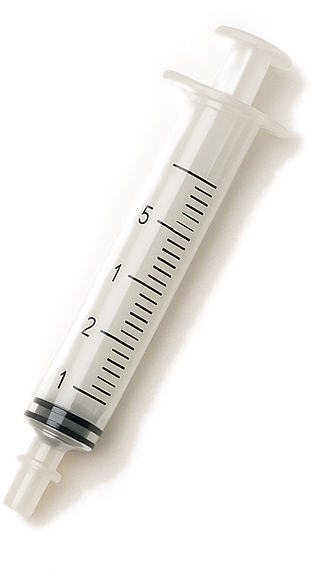

A medical syringe with measurement markings, clear barrel, and plunger, empty of liquid.
A light green box with a vertical metal dial in the center, labeled 'SECURUS' with a tagline 'When your product needs to be secure'.

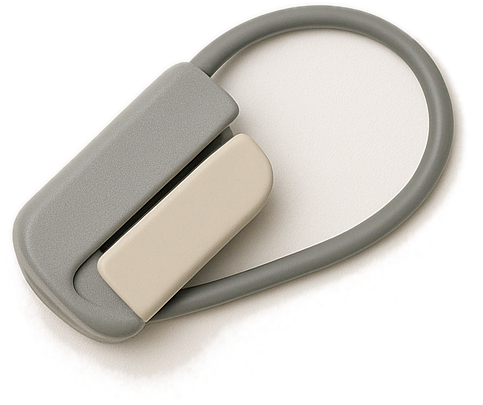

Medical silicone slap bracelet with a cream-colored clasp.
Small transparent medical device with blue screw cap and clear tubing parts, isolated on a white background.

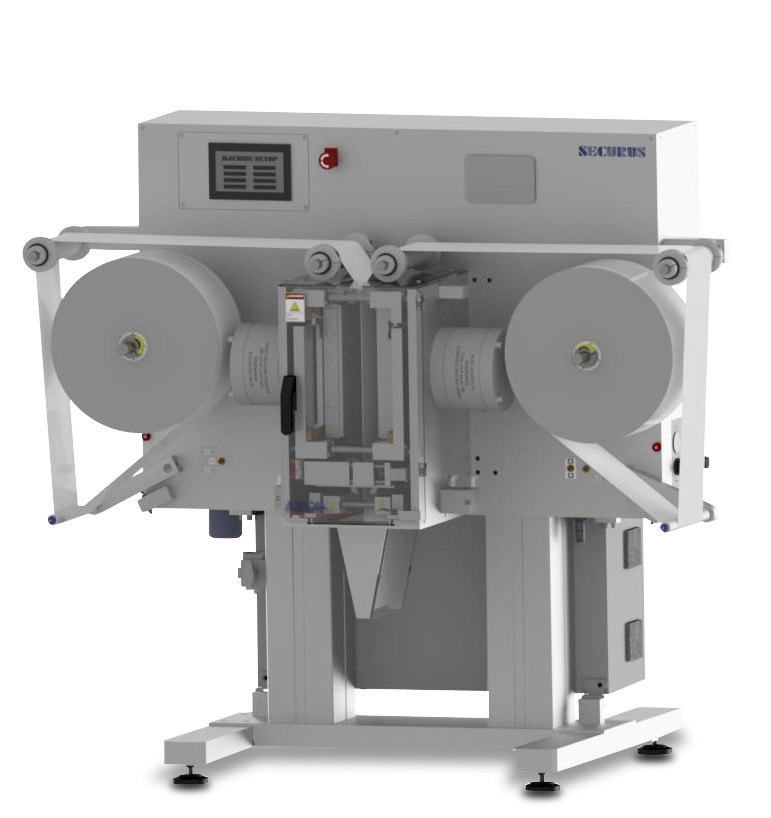

About the VS610 Vertical Pouch Machine

Technical specifications
Rated min Rated max
Pouch Width
Pouch Length		 50.8mm [2”]
50.8mm [2”]		 150mm [6”]
254mm [10”]
Product Thickness 0 19mm [0.75”]
Product Width
Product Length
Product Weight		 Based on product size
Based on product size
Based on product size		 Based on product size
Based on product size
Based on product size
Seal Width
Seal Temperature		 5mm [0.2”]
Ambient		 10mm [0.39”]
232.2 C [450F]
Speed (not including
loading)		 0 20 CPM @ 4”
Length Tolerance
Side to side accuracy		 +/-1mm [0.039”]
+/-1mm [0.039”]		 +/-1mm [0.039”]
+/-1mm [0.039”]
Roll Outside Diameter
Roll Weight
Roll Width
Core Size		 80mm [3.1”]
0
0
76.2mm [3”]		 355mm [14”]
22.5kg [50lbs]
178mm [7”]
76.2mm [3”]
Voltage
Amps
Compressed Air Pressure		 110
20
5.5 bar [80psi]		 240
20
5.5 bar [80psi]

    • Handles pouches from 2” x 2” up to 6” x 10”.

    • Compatible with Tyvek, poly, and foil materials.

    • Eliminates costly premade pouches and inventory.

    • Simple setup: load film, enter pouch length, and run.

    • Quick, toolless changeover in under a minute.

    • Produces secure, reliable seals to protect products.

    • Flexibility: Can make different pouches and sizes.

    • Responsiveness: Reduce lead time | increase production.

    • Efficiency: Reduce operating costs.

    • Reliability: Proven seal technology.

    • Medical devices & healthcare supplies

    • Electronics

    • Industrial components

    • Other specialty products

    • Pouch Width Range: 2” - 6” max

    • Pouch Length Range: up to 10”

    • Roll Diameter: 14” OD max

    • Compatible Films: Tyvek, poly, foil

    • Cycle Rate: 20 CPM [doesn’t include hand loading]

    • Voltage: 110/220VAC and 80psi

    • Quick set up: 5 minutes or less, toolless changeover

    • Eye registration for printed film

    • Thermal printer

    • Camera inspection of print

    • Reject of the pouch - divertor gate

    • Validation package

    • Horizontal feed

    • Infeed conveyor

    • Take-away conveyor

    • Scanner for setup and tracking
